Mosquitto (http://mosquitto.org)
Mosquitto-Auth-Plugin (https://github.com/jpmens/mosquitto-auth-plug#ldap-auth)

  1. Install Mosquitto from ports
$cd /usr/ports/net/mosquitto/
$make config
$make install

$ls -d /usr/ports/net/mosquitto/work/mosquitto-*
/usr/ports/net/mosquitto/work/mosquitto-1.5.8 (remember it)
  1. Install openldap client from ports
$cd /usr/ports/net/openldap24-client
$make config
$make install
$make clean
  1. Check openssl lib
$openssl version
OpenSSL 1.0.2o-freebsd  27 Mar 2018
  1. Compile Mosquitto from git
$pkg install git
$cd ~
$git clone git://github.com/jpmens/mosquitto-auth-plug.git
$cd mosquitto-auth-plug/

4.1. edit config.mk

cp config.mk.in config.mk

MOSQUITTO_SRC = /usr/ports/net/mosquitto/work/mosquitto-1.5.8
OPENSSLDIR = /usr/bin
BACKEND_MYSQL ?= no
BACKEND_LDAP ?= yes

Copmile path on config.mk or Makefile

CFG_LDFLAGS =-L/usr/local/lib
CFG_CFLAGS =-I/usr/local/include

or edit Makefile

BE_CFLAGS = -I/usr/local/include
BE_LDFLAGS = -L/usr/local/lib/

or run comadns for replace

sed 's#MOSQUITTO_SRC =#MOSQUITTO_SRC = /usr/ports/net/mosquitto/work/mosquitto-1.5.8#' config.mk.in > config.mk
sed -i "" 's#OPENSSLDIR = /usr#OPENSSLDIR = /usr/bin#' config.mk
sed -i "" 's#BACKEND_MYSQL ?= yes#BACKEND_MYSQL ?= no#' config.mk
sed -i "" 's#BACKEND_LDAP ?= no#BACKEND_LDAP ?= yes#' config.mk
sed -i "" 's#CFG_LDFLAGS =#CFG_LDFLAGS =-L/usr/local/lib#' config.mk
sed -i "" 's#CFG_CFLAGS =#CFG_CFLAGS =-I/usr/local/include#' config.mk
sed -i "" 's#BE_CFLAGS =#BE_CFLAGS = -I/usr/local/include#' Makefile
sed -i "" 's#BE_LDFLAGS =#BE_LDFLAGS = -L/usr/local/lib/#' Makefile

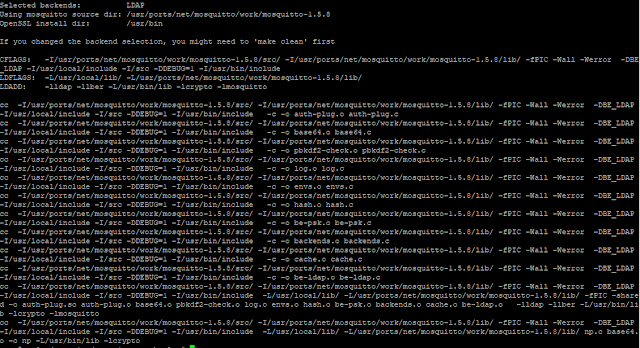

4.2 Compile

$pkg install gmake
$qmake


FreeBSD compile Mosquitto-Auth-Plugin

4.3 Copy lib

$cp auth-plug.so /usr/local/lib
  1. Test LDAP request witj openldap tools ldapsearch
    *RFC 4516. LDAP URLs look like this: ldap://hostport/dn[?attrs[?scope[?filter[?exts]]]]
    where:
      hostport is a host name with an optional “:portnumber”
      dn is the search base
      attrs is a comma separated list of attributes to request
      scope is one of these three strings:
        base one sub (default=base)
      filter is filter
      exts are recognized set of LDAP and/or API extensions.

Example:
  ldap://ldap.example.net/dc=example,dc=net?cn,sn?sub?(cn=*)*

$ldapsearch -LLL -h 127.0.0.1 -D "uid=someuser,ou=users,dc=lexxai,dc=pp,dc=ua" -w userPassword -b "dc=lexxai,dc=pp,dc=ua" "(uid=someuser)"

dn: uid=someuser,ou=users,dc=lexxai,dc=pp,dc=ua
uid: someuser
cn: Some
sn: User
userPassword:: ewe334X==
objectClass: uidobject
  1. Use LDAP URI
auth_opt_ldap_uri ldap://127.0.0.1/ou=users,dc=lexxai,dc=pp,dc=ua?cn?sub?(uid=@)
  1. Use auth-plug on Mosquitto
/usr/local/etc/mosquitto/mosquitto.conf
auth_plugin /usr/local/lib/auth-plug.so
auth_opt_backends ldap
auth_opt_binddn cn=manager,dc=lexxai,dc=pp,dc=ua
auth_opt_bindpw s3crits33as
auth_opt_ldap_uri ldap://127.0.0.1/ou=users,dc=lexxai,dc=pp,dc=ua?cn?sub?(uid=@)
auth_opt_ldap_acl_deny false
  1. ACL
    Since ACL not supported by LDAP auth plugin, try to use fixed ACL from file. ACL will work as backends in case option auth_opt_ldap_acl_deny = false in mosquitto.conf.
/usr/local/etc/mosquitto/mosquitto.conf
acl_file /usr/local/etc/mosquitto/aclfile

/usr/local/etc/mosquitto/aclfile
user superAdmin
topic write users/#

pattern read users/%u

By this ACL one user superAdmin can write to all topics of users, and user can read only own topic like ‘users/someuser’ if username is ‘someuser’.

За матеріалами:
FreeBSD Mosquitto i Mosquitto-Auth-Plugin (Grzegorz Rybicki)
