Роблю для себе нотатки: Proxmox та робота з накопичувачами.

Physical disk to kvm

lshw -class disk -class storage
...

           *-disk
                description: ATA Disk
                product: ST3000DM001-1CH1
                vendor: Seagate
                physical id: 0.0.0
                bus info: scsi@3:0.0.0
                logical name: /dev/sda
                version: CC27
                serial: Z1F41BLC
                size: 2794GiB (3TB)
                configuration: ansiversion=5 sectorsize=4096
...

ls -l /dev/disk/by-id/ata-ST3000DM001-1CH166_Z1F41BLC
ls -l /dev/disk/by-id | grep Z1F41BLC

add to kvm :

qm set  592  -virtio2 /dev/disk/by-id/ata-ST3000DM001-1CH166_Z1F41BLC
update VM 592: -virtio2 /dev/disk/by-id/ata-ST3000DM001-1CH166_Z1F41BLC

check:

grep Z1F41BLC /etc/pve/qemu-server/592.conf
virtio2: /dev/disk/by-id/ata-ST3000DM001-1CH166_Z1F41BLC,size=2930266584K

####

####

How to add an existing virtual disk to Proxmox

#

The first step is to place the disk image into the directory belonging to the virtual machine, on my system that would be /var/lib/vz/images//

Obviously the disk image should be in one of the formats supported by Proxmox, such as qcow2 or raw. Use qemu-img convert to convert between formats.

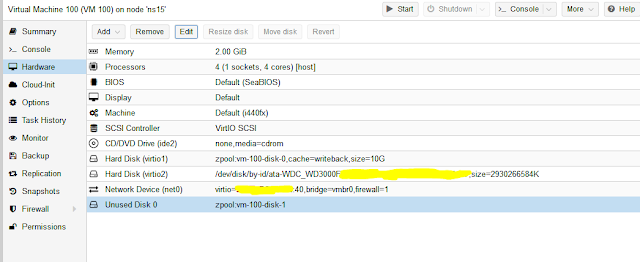

Next, go to Proxmox and check if the disk shows up under “Hardware” as an unused disk:

Converting between image formats

qemu-img convert: raw, qcow2, qed, vdi, vmdk, vhd

qemu-img convert -f raw -O qcow2 image.img image.qcow2

qemu-img convert -f vmdk -O raw image.vmdk image.img

VBoxManage: VDI (VirtualBox) to raw

VBoxManage clonehd ~/VirtualBox\ VMs/image.vdi image.img –format raw

####

Import existing disk image to VM

##

$zfs list
NAME                  USED  AVAIL  REFER  MOUNTPOINT
zpool                43.4G  2.59T    96K  /zpool
zpool/images         1.13G  2.59T  1.13G  /zpool/images

$qm importdisk 100  /zpool/images/FreeBSD-12.0-RELEASE-amd64.qcow2  zpool

$zfs list
NAME                  USED  AVAIL  REFER  MOUNTPOINT
zpool                43.4G  2.59T    96K  /zpool
zpool/images         1.13G  2.59T  1.13G  /zpool/images
zpool/vm-100-disk-0  10.3G  2.60T    56K  -
zpool/vm-100-disk-1  32.0G  2.62T  1.81G  -


Unused Disk 0
